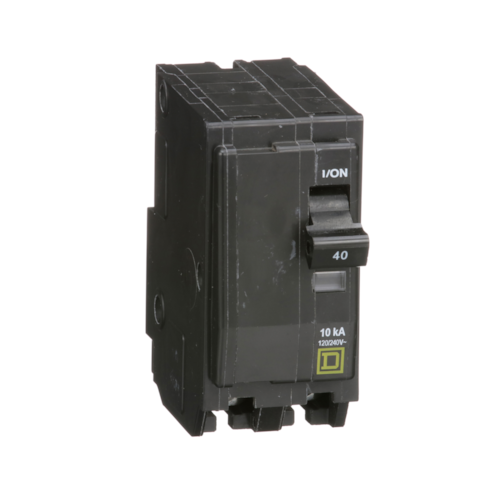

Mini circuit breaker, QO, 40A, 2 pole, 120/240VAC, 10kA, plug in mount | 40 A | Plug-in | 2P

QO240 | Our# SQD QO240

Visit Our Showroom

Login to view pricing & availabilty


Add to list

Current Rating :

10 A

15 A

20 A
See Options
35 A

40 A
Selected
60 A

70 A
See Options

Mounting Type :

Plug-in
Selected
Bolt-on
See Options

Number of Poles :

2P
Selected
1P
See Options

Brand Id: 160302

Description

QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 40A at 120/240VAC. This unit provides 10kA breaking capacity and is plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
